Parts List Auto-Updated

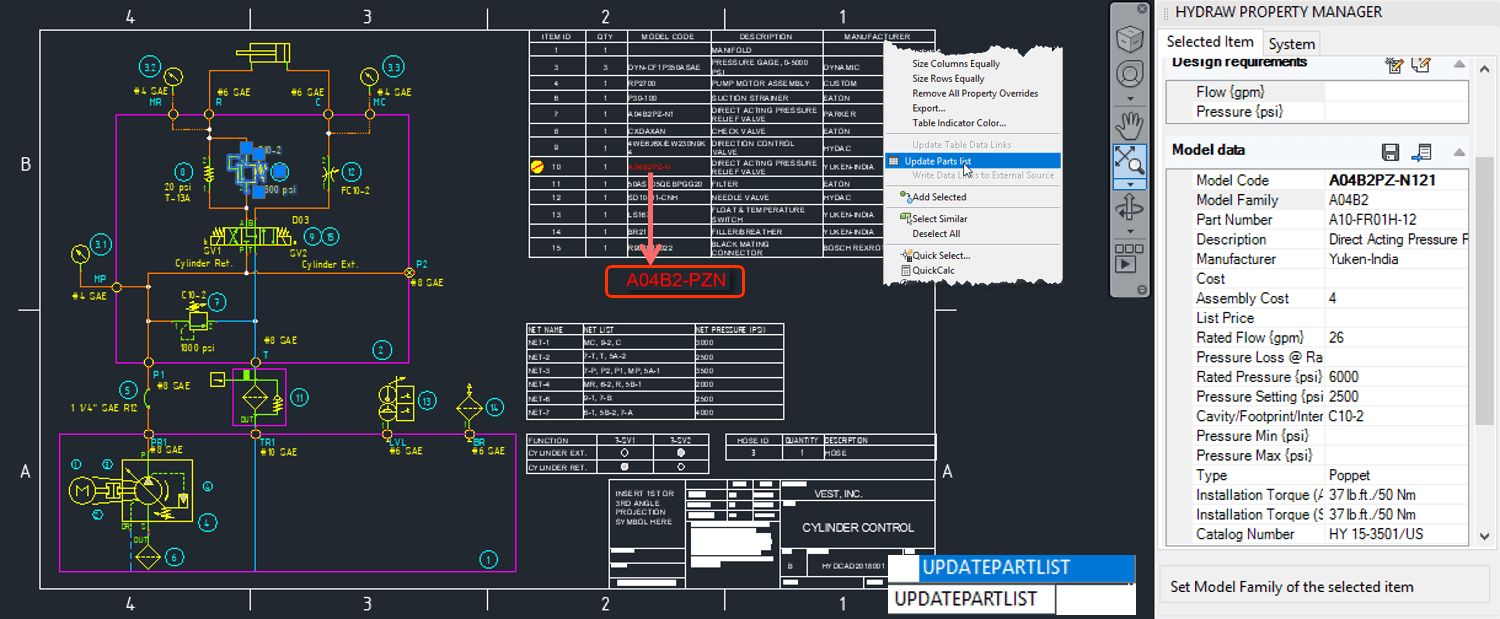

Change in a component's property value
reflects in the Parts List
Inserted Symbol Auto Numbered

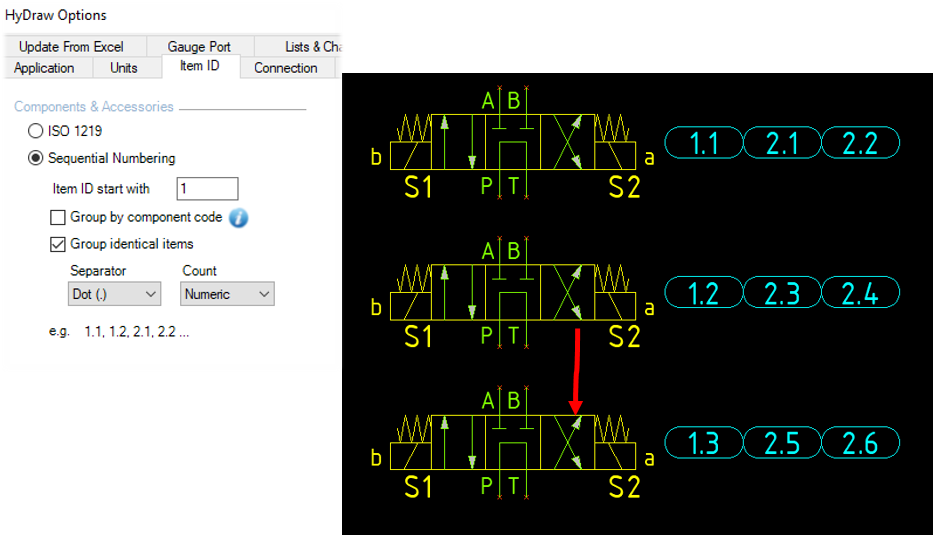

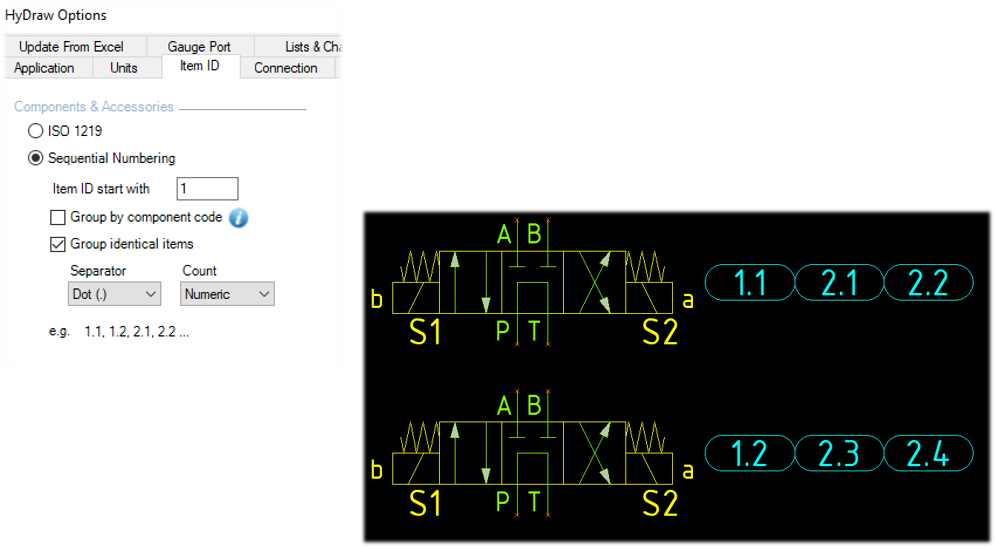

Set Components & Accessories numbering scheme in HyDraw Options, Item ID tab
Copied Symbol Auto Numbered
Set Components & Accessories numbering scheme in HyDraw Options, Item ID tab
Group Item ID by Component Code

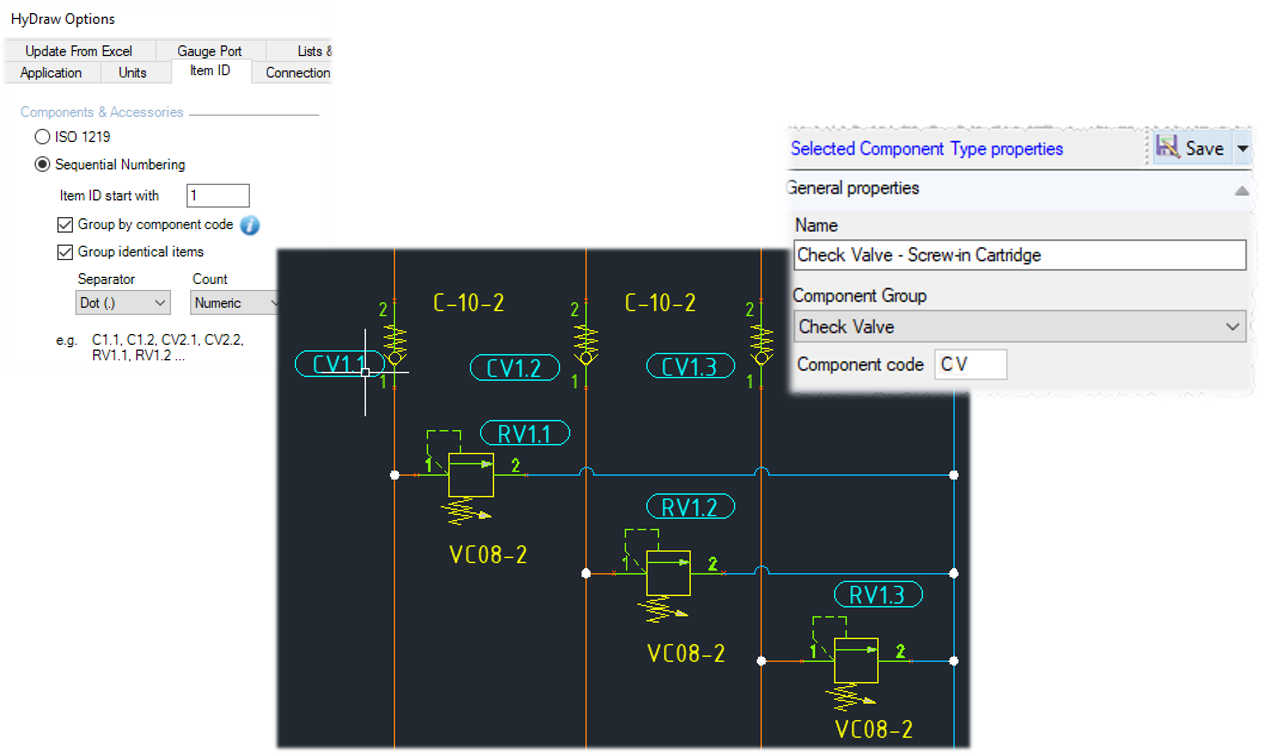

It's based on the Component code assigned to Component types

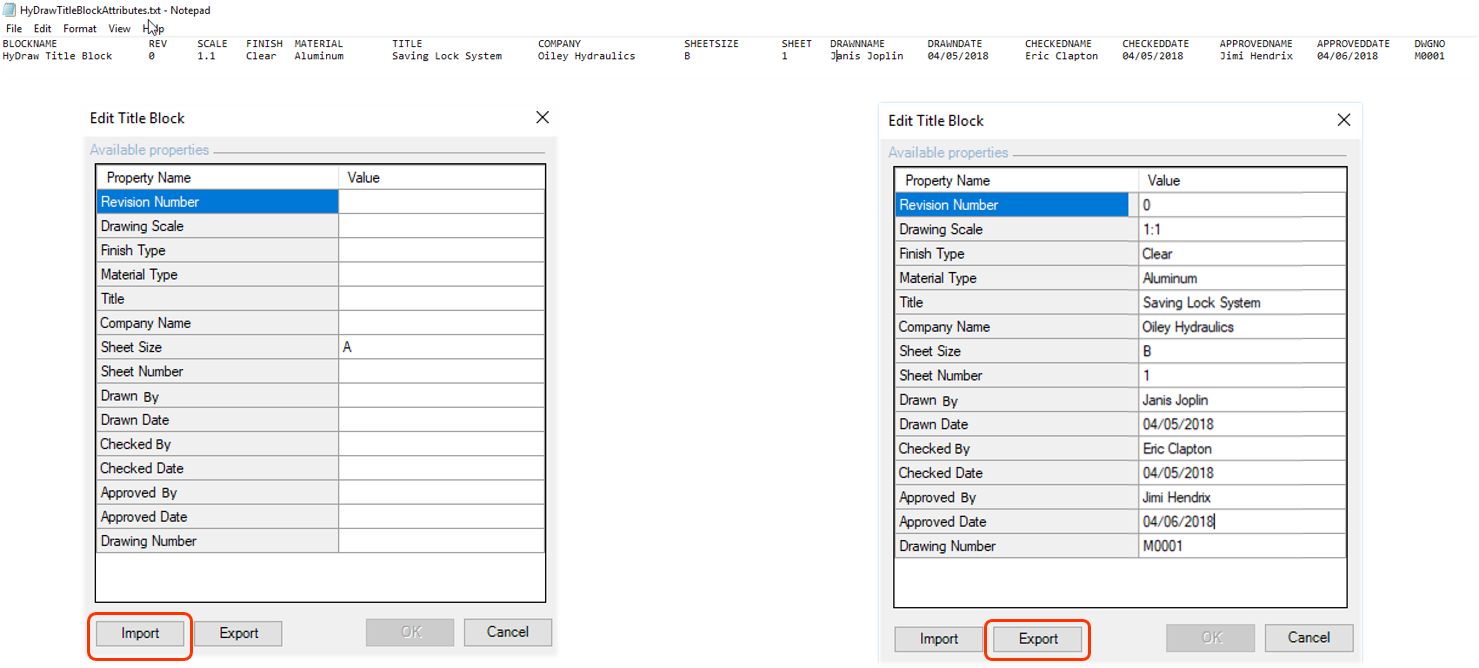

Title Block Attributes Updated using Text File
Import/Export the Title Block attributes

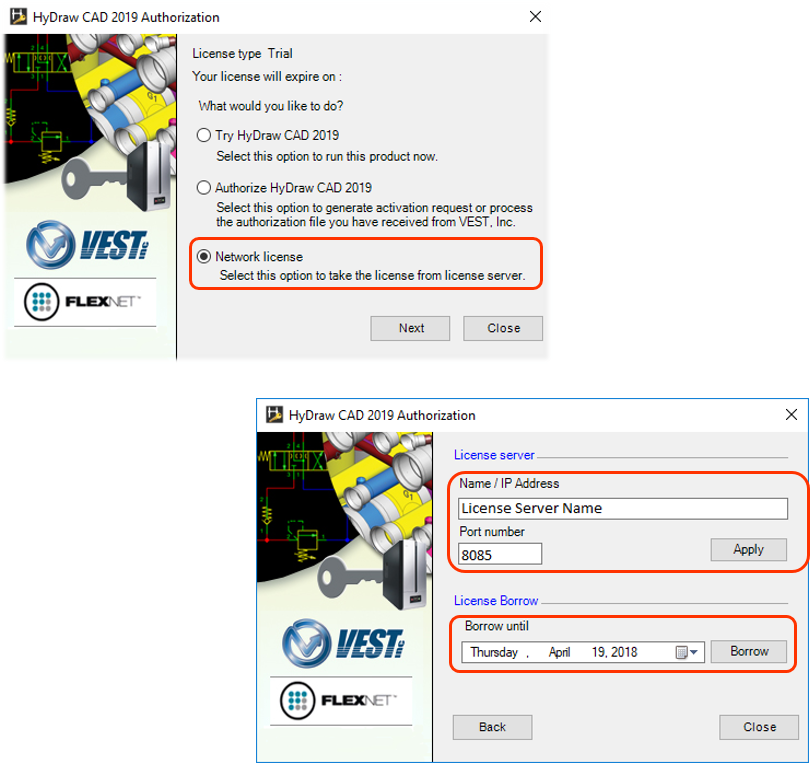

Network License option available
within HyDraw CAD Client
Borrow License from HyDraw CAD Client
Search Components by Application Type

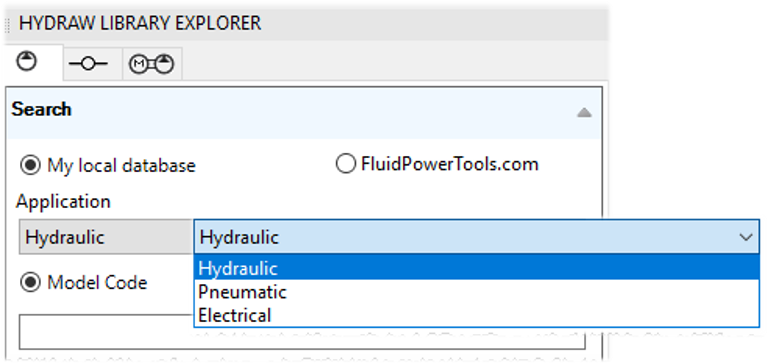

Hydraulic, Pneumatic or Electrical options are now available within HyDraw Library Explorer
Select Symbol to Insert from Parts List

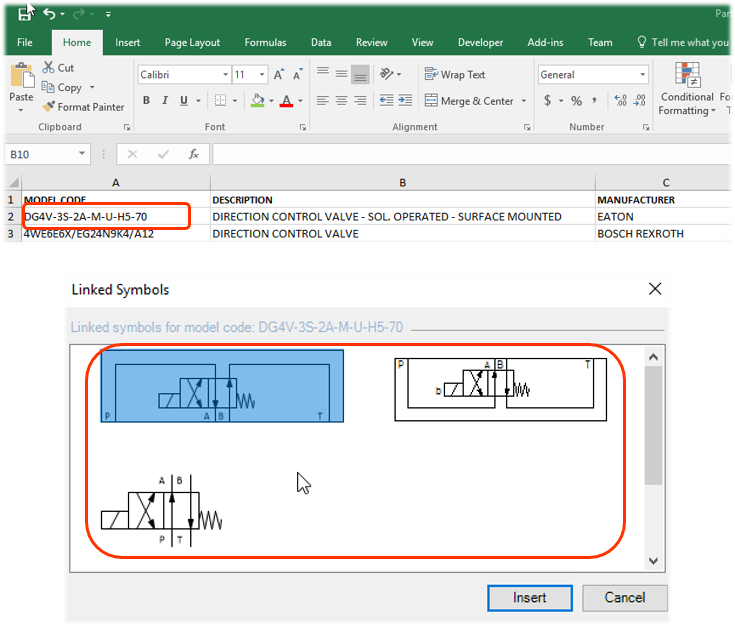

Model Code in Parts List has multiple symbols linked to it in the HyDraw Library

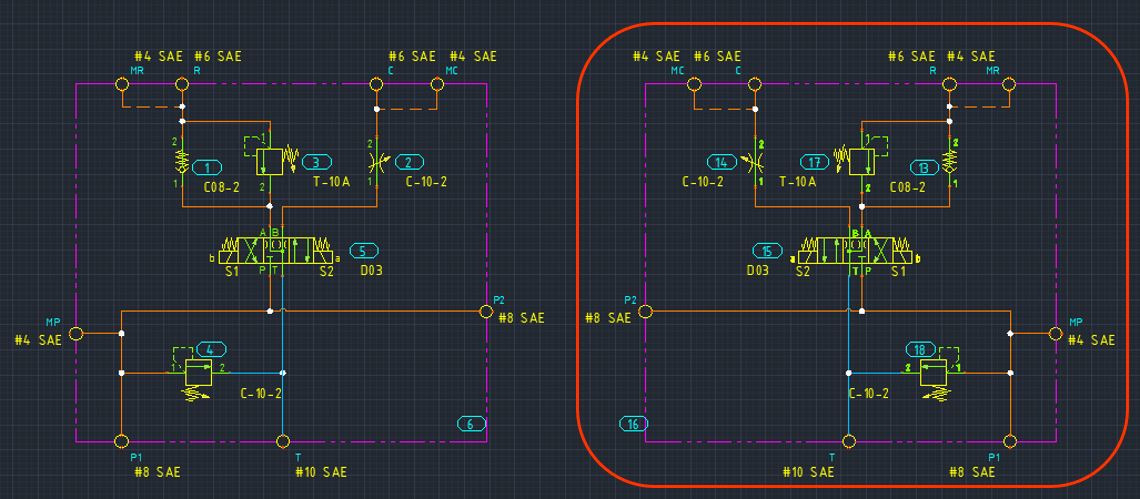

Mirror HyDraw Schematic
Auto correction of orientation and position of texts of Item ID, Properties and Balloons

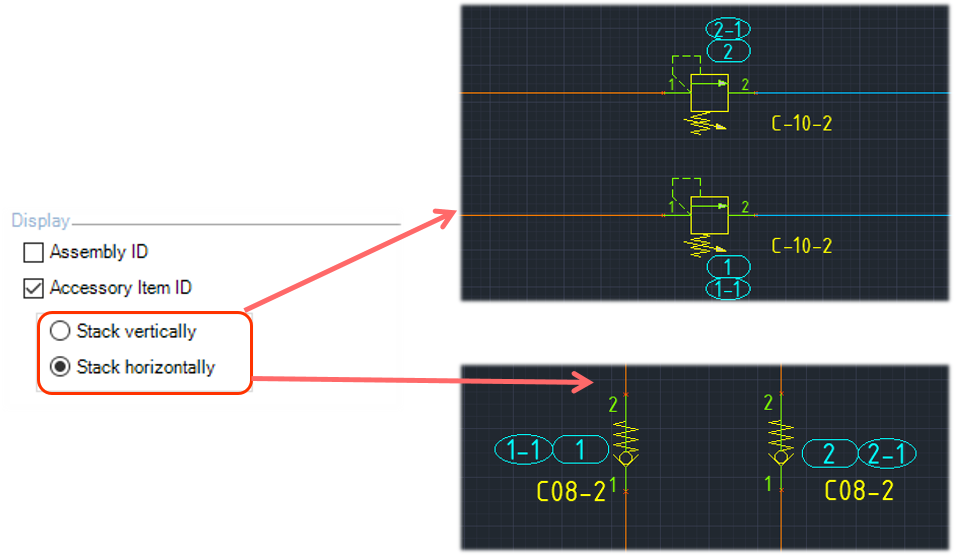

Vertical Stacking option for Item ID and Balloons
ISO 1219-2 Item ID Auto Numbering Scheme
Define for the first symbol, HyDraw then stores the prefix and continuously increments the index along with the prefix.

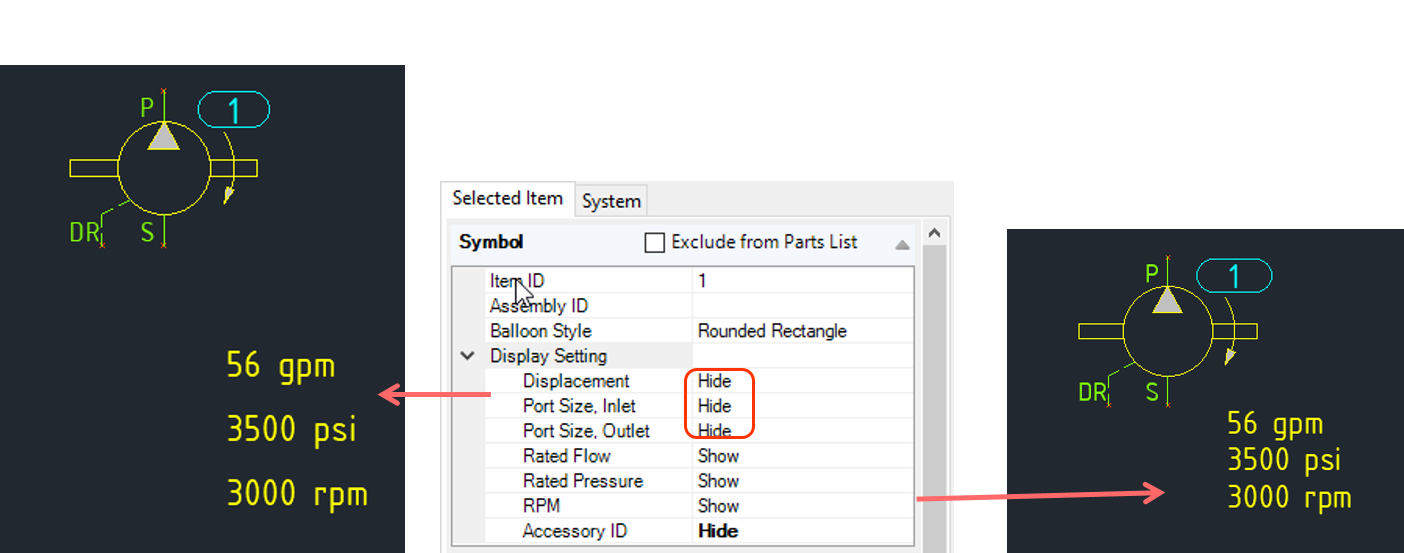

Equal-Spaced Properties in Drawing
Spacing between the displayed properties is automatically controlled
Auto Grouping of Components without Model Code
All identical components without model code are grouped based on properties listed in the Parts List

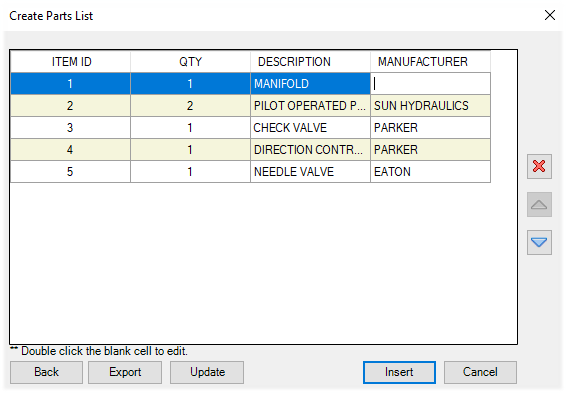

Edit/Update Blank Fields in Parts List

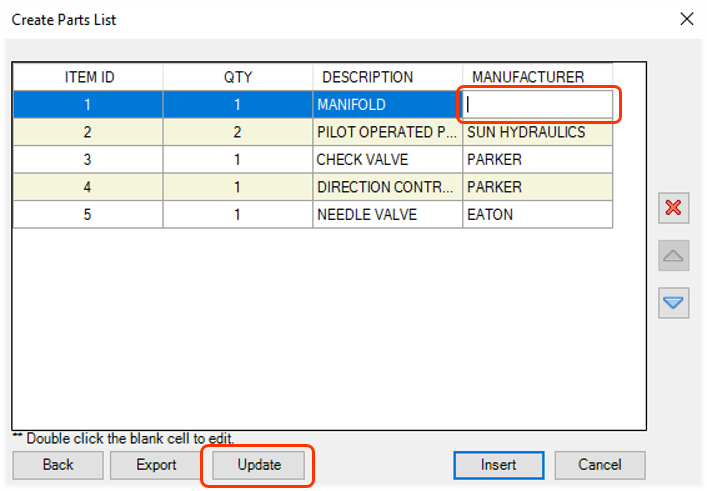

Double click to type the required properties

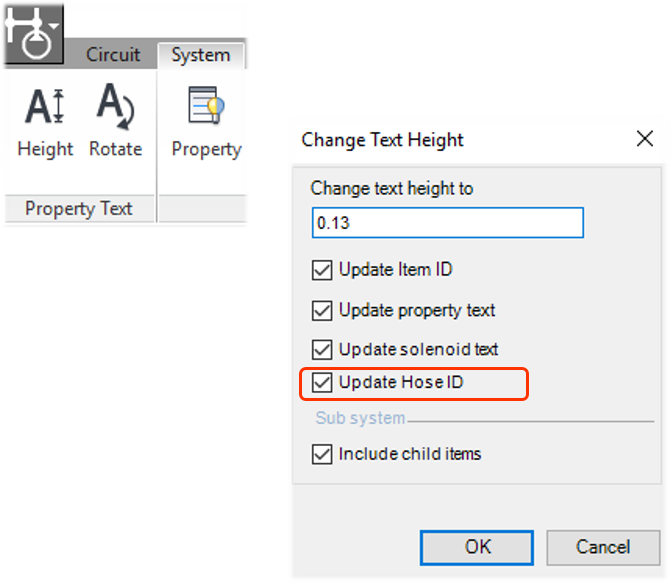

Update Hose ID Text Height
Change and Update Hose Balloon Type

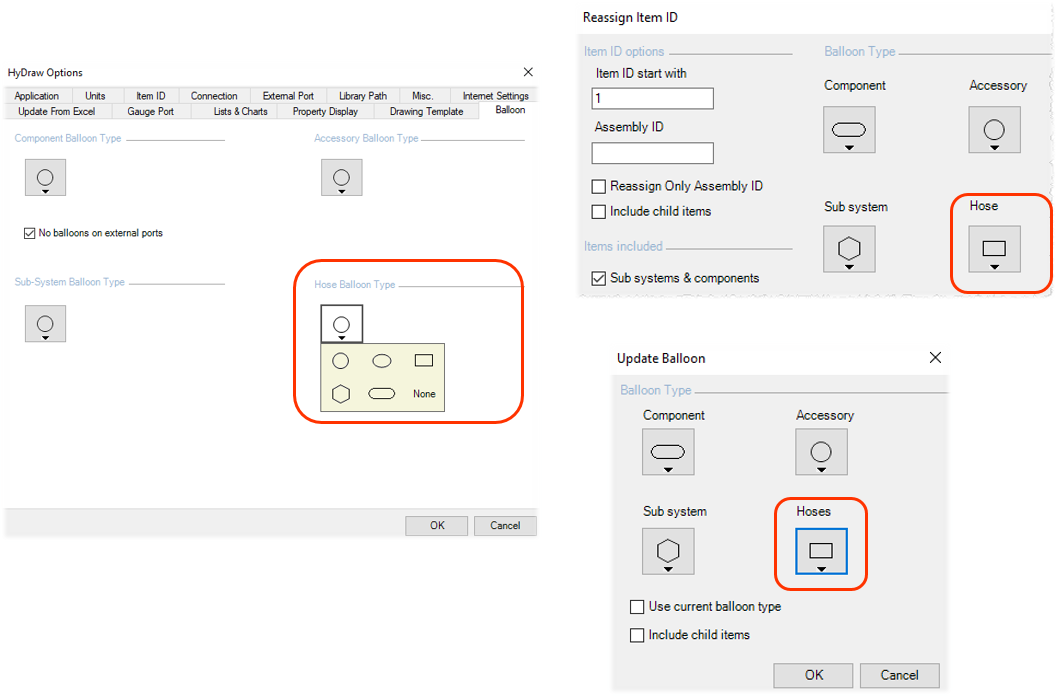

Set separate Balloon type for hoses
Non-Unique Solenoid ID Warning

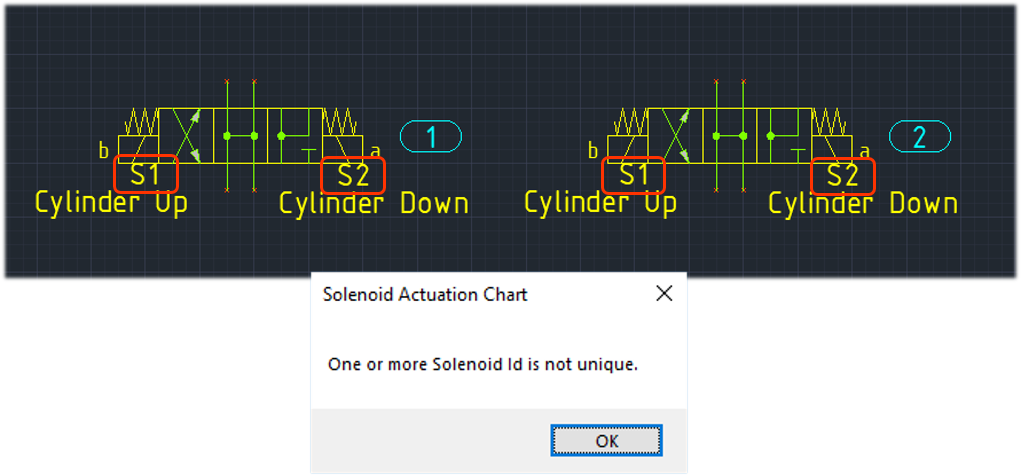

Avoid duplicate Solenoid IDs, when chart is created without Item ID as an option
Enhanced Schematic Check

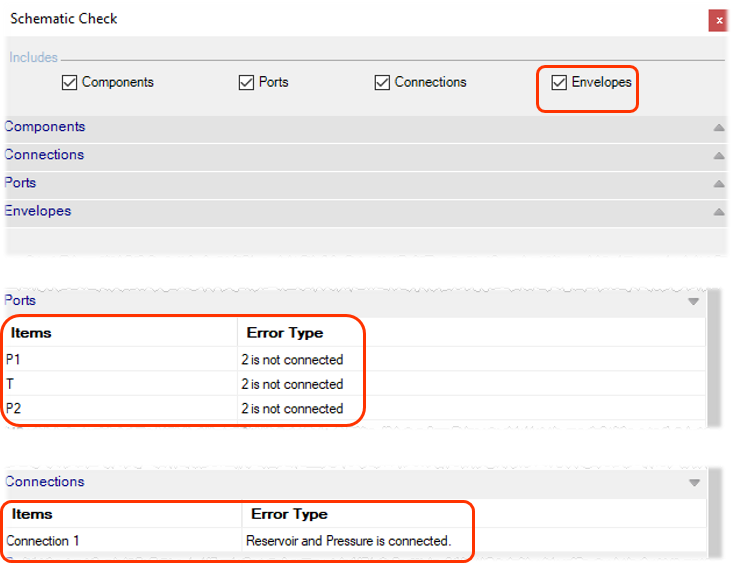

Schematic check for Envelopes lists unconnected ends of External Ports

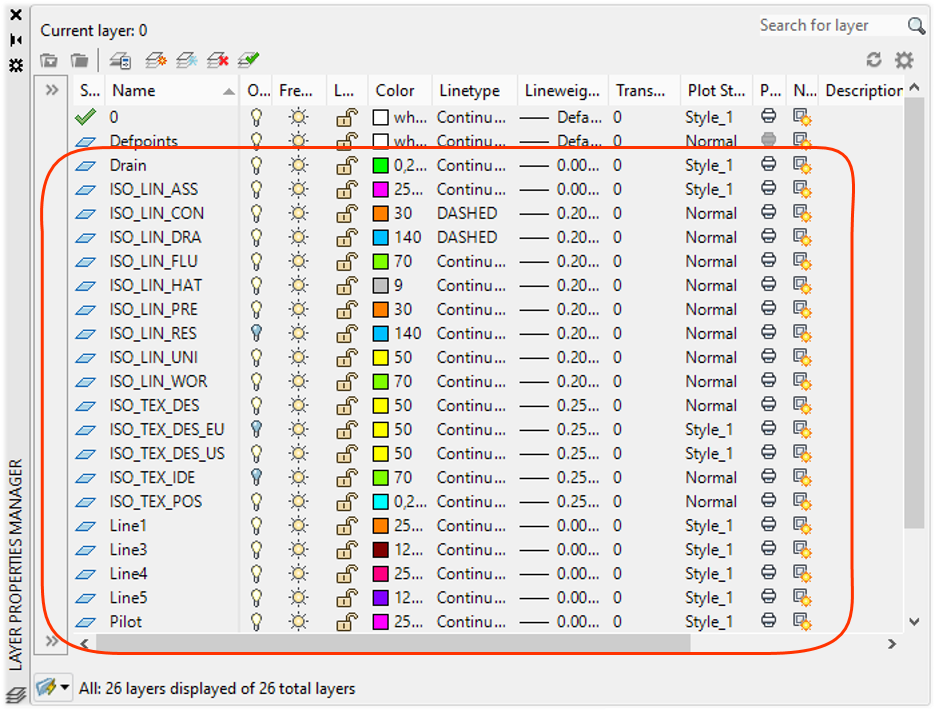

Customized HyDraw Layer Properties Stored in Drawing
When a new symbol is inserted into the drawing, changes made to the layer properties are stored and not overwritten by the default HyDraw layer properties
Exclude Multiple Items from Parts List

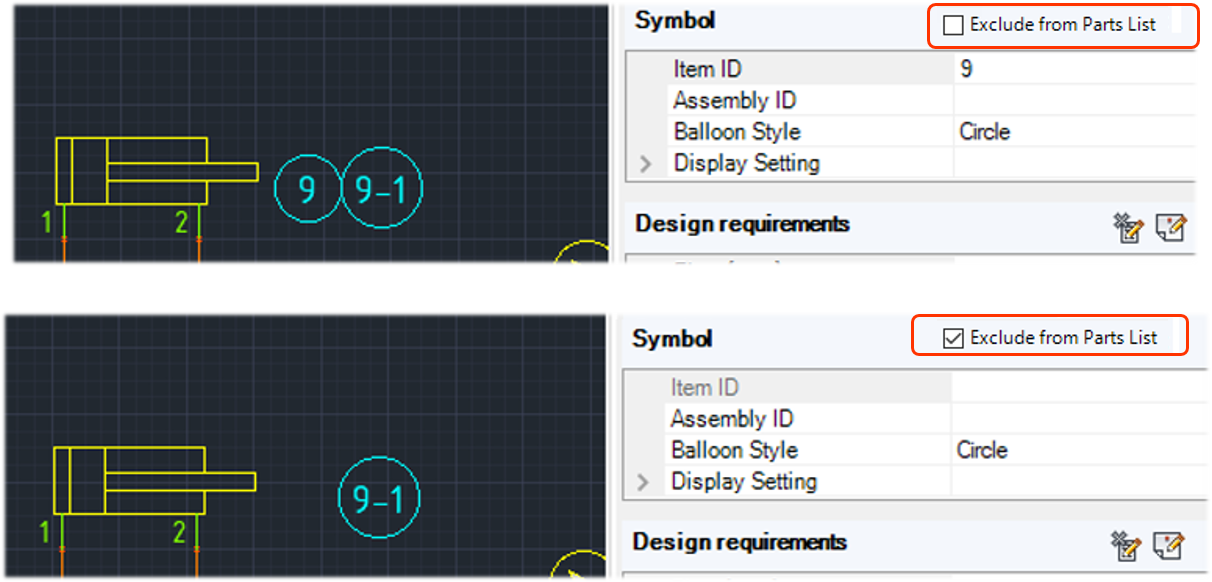

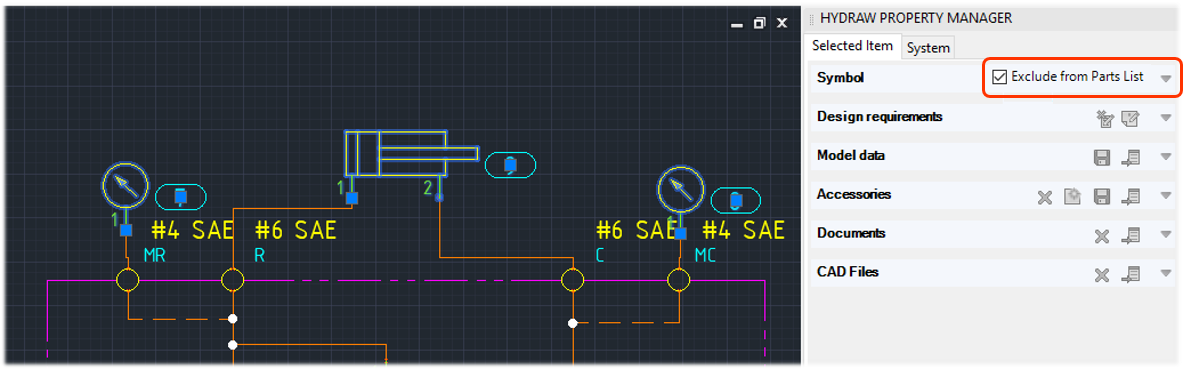

Multiple Component selection in the drawing can be excluded from the Parts List
Display Accessories of Components Excluded from Parts List

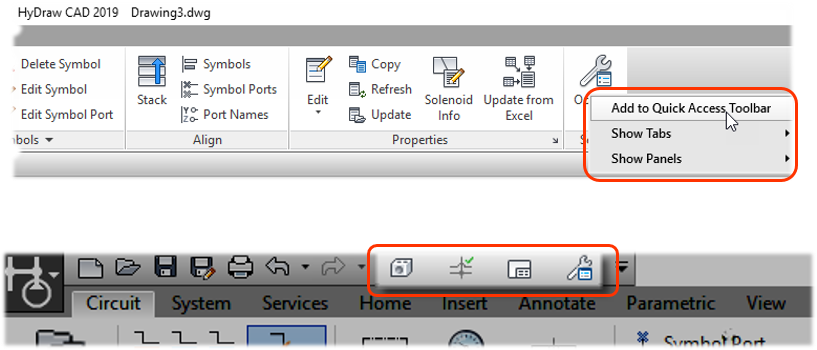

Add HyDraw CAD Commands to Quick Access Toolbar
(Right-click the HyDraw CAD command on the ribbon menu)

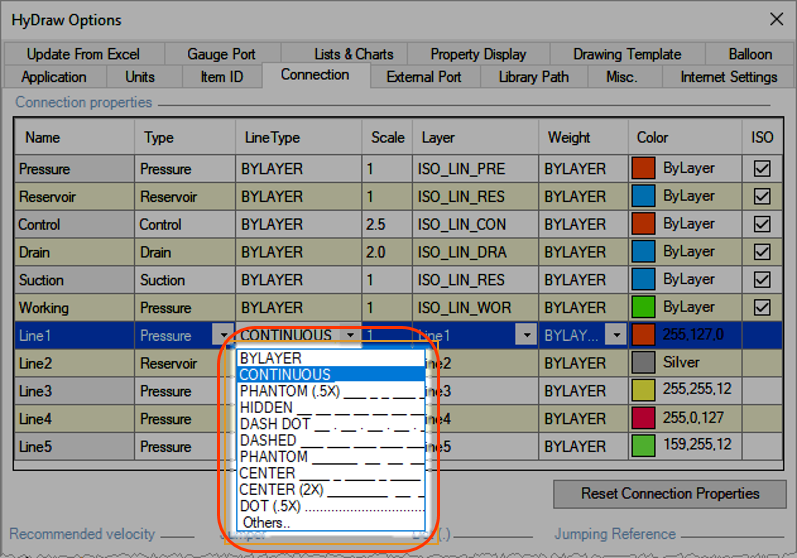

Line Type Preview available for HyDraw Connection Lines

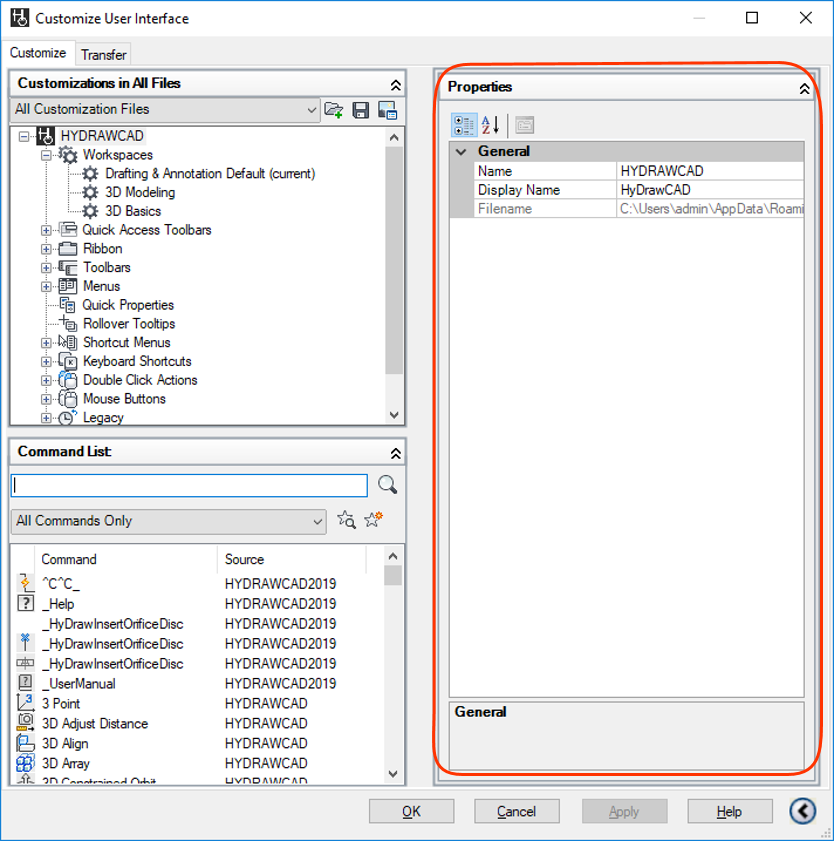

HyDraw Ribbon Created using Cuix file
Enables "Add to Quick Access" toolbar and stores any customizations made to the interface. Also, available in a new instance of HyDraw
HyDraw® Library Manager 2019

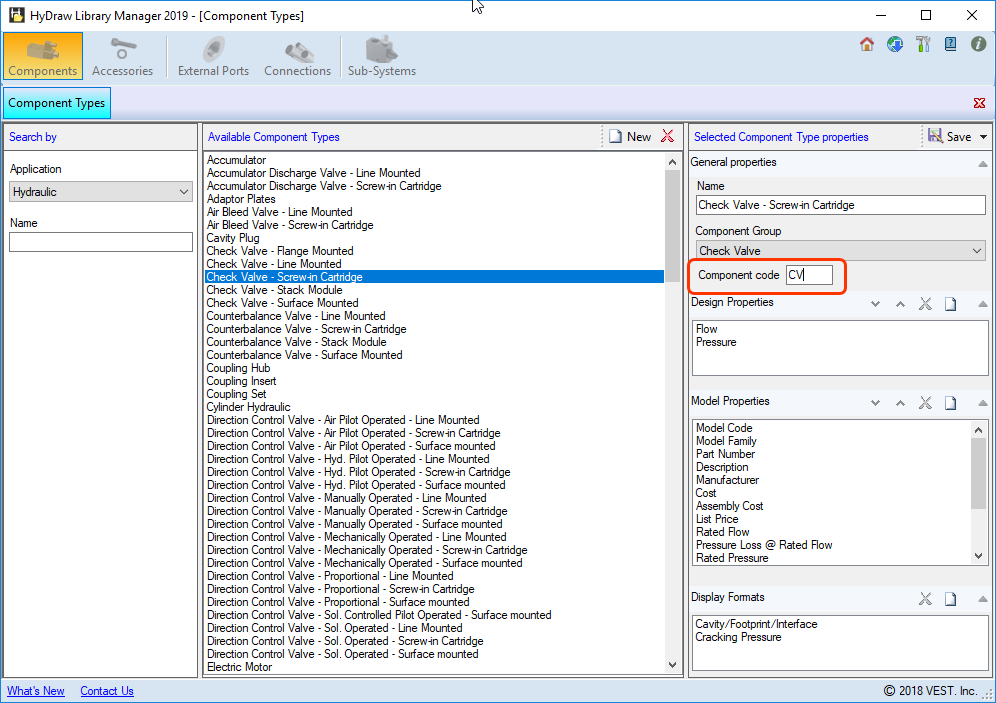

Define Component Code for a Component Type symbols
