on the HyDraw® CAD ribbon menu.1. Click
System > Ports
List on the HyDraw® CAD ribbon menu.
The Select Ports prompt displays.
2. Select a single or multiple port. After selection, press the Enter key.
The Create Ports List dialog box displays.
3. Select the Group identical items check box to group all identical items in the Ports list.
• Select the required format.
• If no format is selected, then the default format is applied.
4. Click Next to display the Create Ports List dialog box.

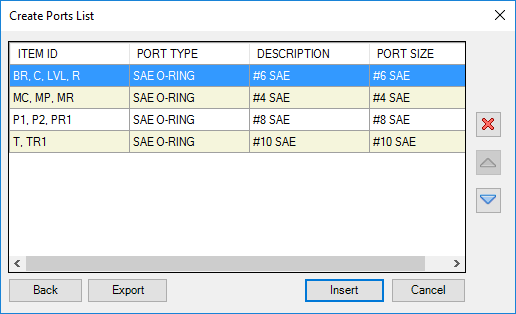

The Create Ports List dialog box displays the details of the port properties.
5. Click
or
to
move the selected item row up or down, respectively.
6. Click
to
delete the selected port from the list.
7. Click Insert to Drawing to insert the Ports list as a separate list in the drawing.
8. Select an area to create the Ports list.
Specify first corner: prompt displays.
9. Specify the first corner.
The Specify opposite corner: prompt displays.
10. Specify the opposite corner.

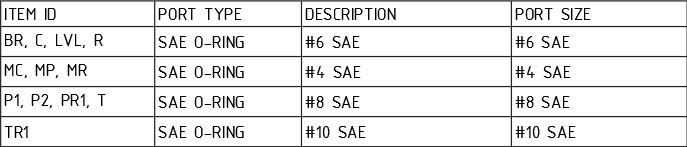

The Ports list is inserted into the drawing in a tabular form.
11. To save the Ports list as an Excel sheet, click Export to Excel.
The Ports List is saved in the Excel format.
