Add newly designed or modified external ports into the HyDraw® Symbol library.

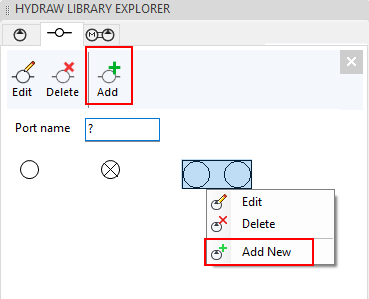

1. HyDraw Library Explorer > External Port Library.
2. Select the Add button.
3. Select the symbol to be added.
4. Specify the Insertion point.
5. Specify plugged port/open port.
6. Press Enter/Tab.
The symbol is inserted into the library.
Note:
The symbols should have minimum of one connection point.
