Use and Borrow Network License

The HyDraw^® client machines can use a network license available from the HyDraw License Server Manager.

Use Network License

1.     Double click the HyDraw^® CAD 2024 desktop icon.

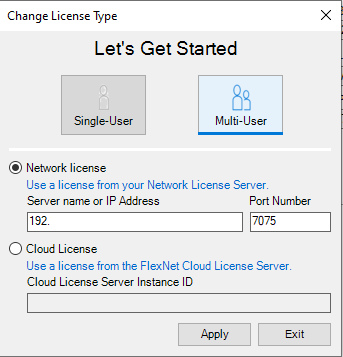

The HyDraw CAD 2024 Change Licence Type dialog box displays.

Alternatively select,

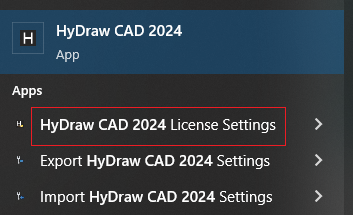

Start menu > HyDraw CAD 2024 > HyDraw CAD 2024 License Settings

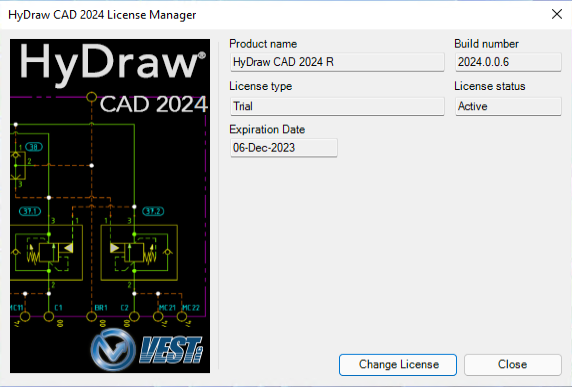

The HyDraw CAD 2024 License Manager dialog box displays.

3.     Click Change Licence

2.     Select the Network license option.

4.     Set the License Server Name/IP Address and Port number.

5.     Click Apply.

Borrow Network License

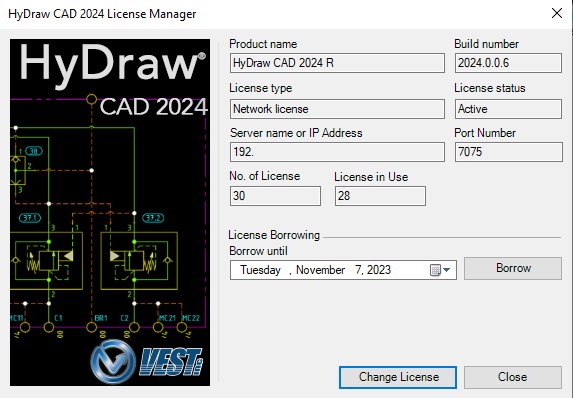

1.     Select the Borrow until date.

Alternatively select,
Start menu > HyDraw CAD 2024 > HyDraw CAD 2024 License Settings

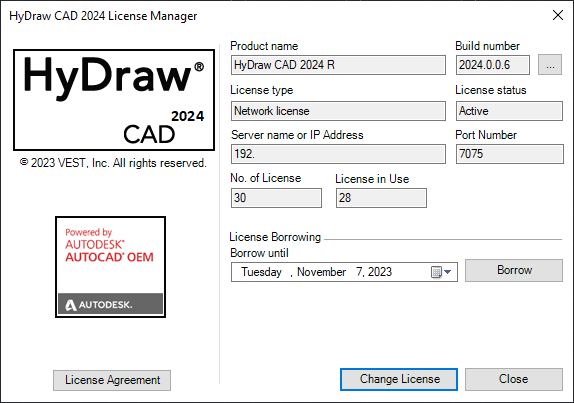

The HyDraw CAD 2024 License Manager dialog box displays.

2.     Click the Borrow button.

The Borrowed license details are displayed in the grid.

3.     Click Close to exit.

Note:

Refer, HyDraw License Details.
