Model Properties

Model properties section displays the available model properties. You can also add new model properties.

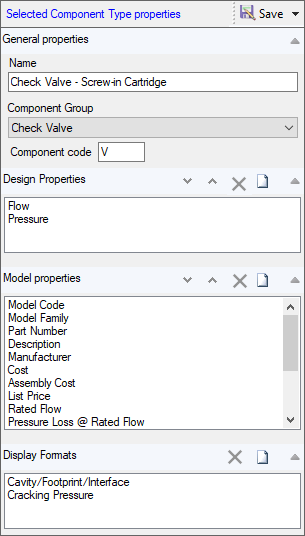

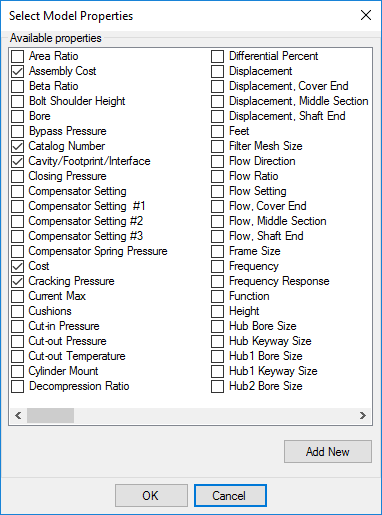

1.      Click  on the Model properties caption bar to display the Select Model Properties dialog box.

2.      Select any property checkbox to display it in the Model Property section.

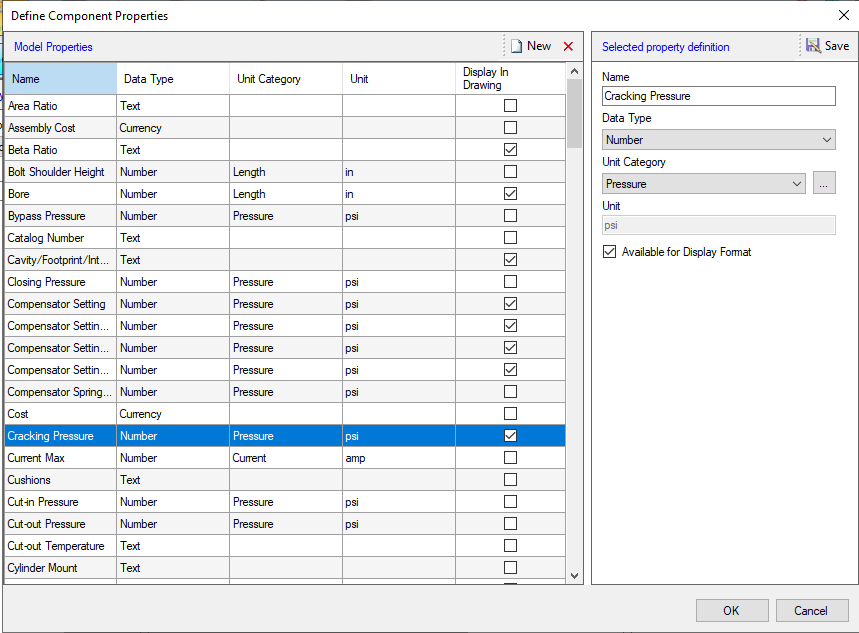

3.      Click Add New to display the Define Component Properties dialog box.

4.      Click New to add new property.

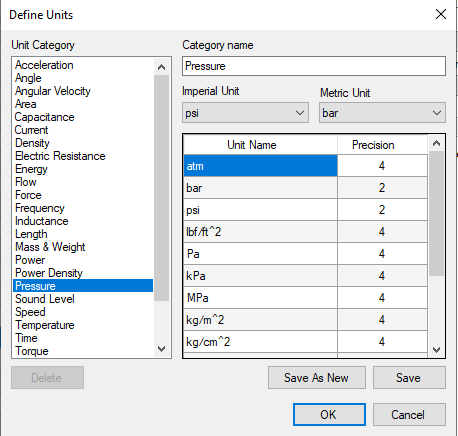

5.      Click  in the Selected property definition section  >  Unit category to display the Define Units dialog box.

6.      Select the Display in drawing check box to display the model property in the drawing.

7.      Click Save to save the new property or update the existing property.

Note:

·        Essential model properties cannot be deleted; therefore,  remains inactive on selection of such essential properties.

·         remains inactive, if Text, Currency, or Yes/No is selected in the Unit category box.
