Cartridge Valve Cavities

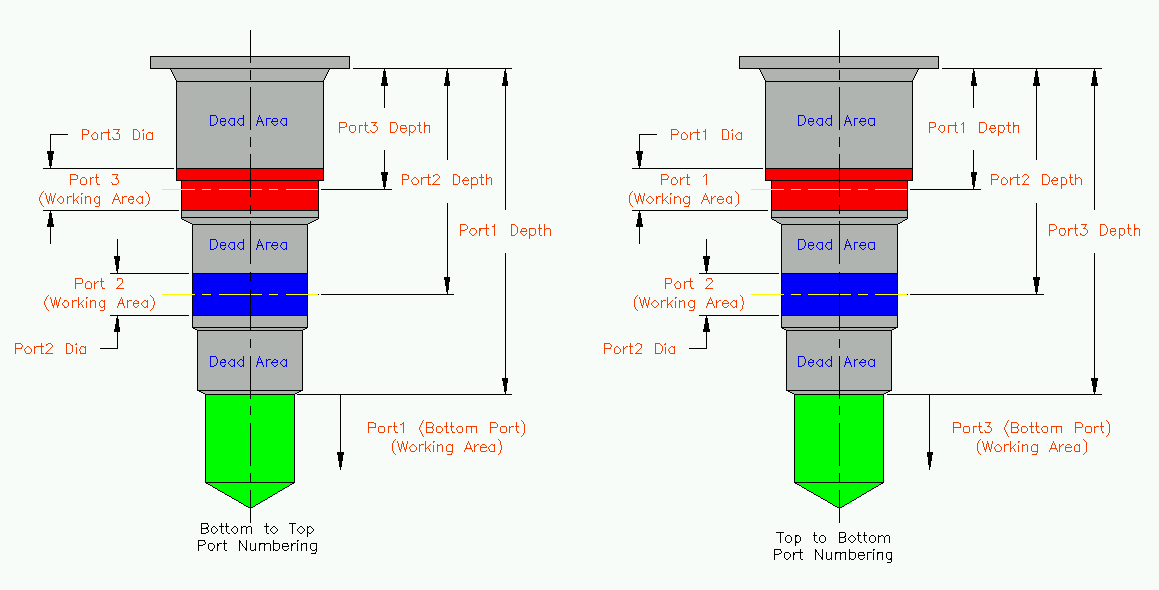

Typical 3 Port Cartridge Valve Cavity

Cartridge valve cavities are divided into Working Areas (port area) and Dead Areas. All parts of a cavity other than the port area are considered the Dead Area.

Note

Bottom port depth of a cartridge valve cavity is the starting depth of the bottom port from the spot face.
