Delete Chamfer

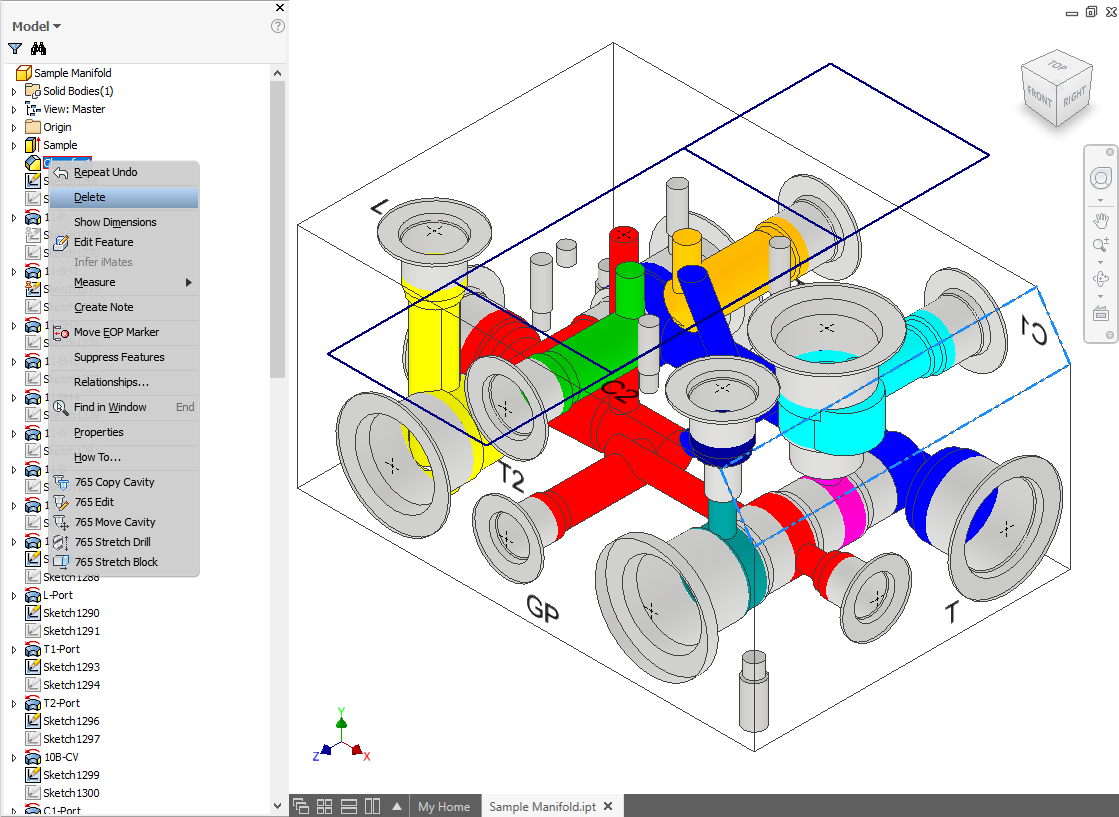

Inventor Model Feature Manager Design Tree – Delete Chamfer

1.      Select the Inventor Model Feature Manager Design tree.

2.      Right-click the Chamfer feature and select Delete.

Note

Similarly, edit the chamfer from the Inventor Model Feature Manager Design tree.

Limitations:

The following commands may not function fully or might not produce expected results with the non-rectangular manifold having angled surfaces (Chamfered surfaces not parallel to the six manifold faces).
