Automatically mark construction ports on each view in 2D drawing views.
MDTools 775 ribbon > Display panel > Construction Port
MDTools®

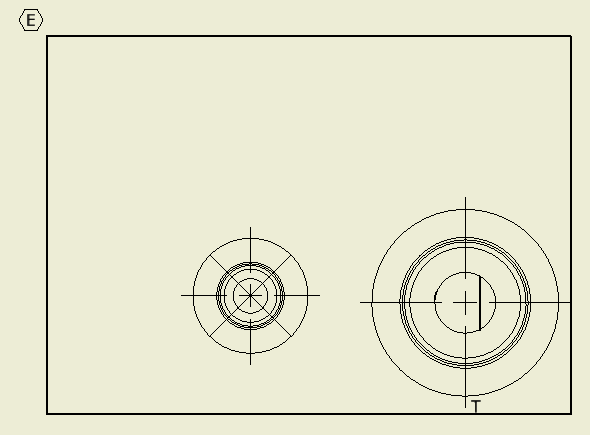

marks construction holes in each drawing view of the 2D drawing.
In “X” view, mark of the construction hole is created in a separate layer
named “X-Drill”.
Note
§ If 2D views are created manually, then use the following naming convention for the manifold views.
Top A
Front B
Bottom C
Left D
Right E
Back F
§ The Construction Holes command will not work if you do not use the view names, per naming conventions.
§ The “X” mark will not be deleted automatically from the 2D drawing when you delete a construction port in the part model.
