Automatically displays the top view of undercuts as circles in 2D drawing.
MDTools 775 ribbon > Display panel > Undercut
Show/Hide Undercut Dialog box.
Show

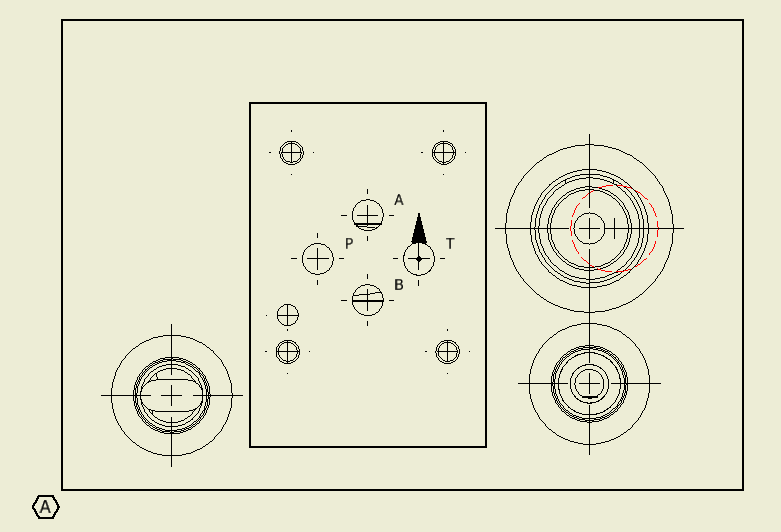

MDTools® displays the top view of undercuts as circles in the 2D drawing.
Hide
MDTools removes the top view of undercut as circles in the 2D drawing.
Note
§ Undercuts are placed on a separate layer.
§ Change the layer using the MDTools layer command.

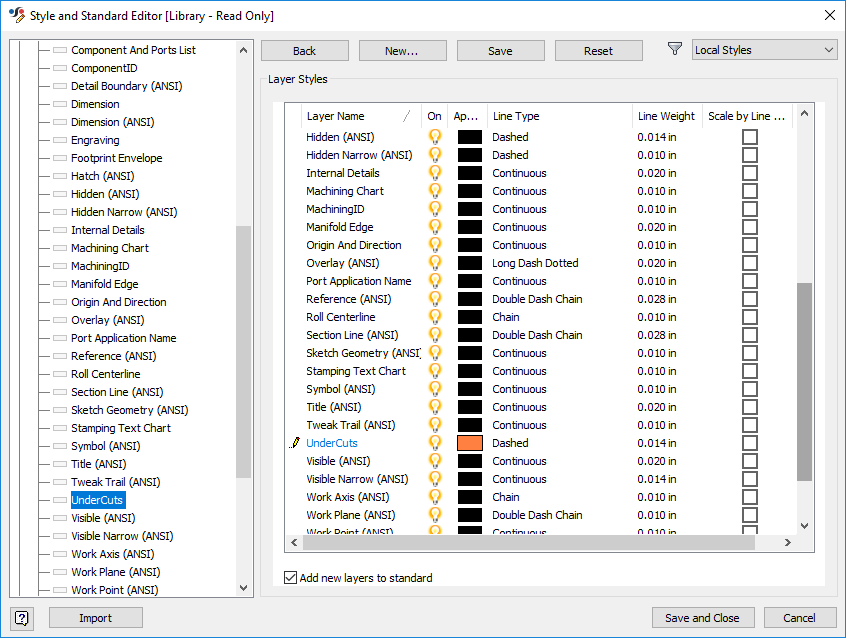

Undercut layer setting
