Note: For using Network licensing, the VEST Local License Server Manager needs to be installed on the computer that controls licensing for all the VEST clients on the company network.
For more details contact support@VESTusa.com
1. Start > MDTools 785

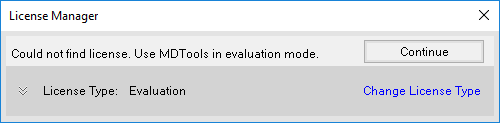

The License Manager dialog box displays.
(before the license is authorized, MDTools is in Evaluation mode)
2. Click Change License Type to select and activate an alternative MDTools License option.
(Or Click Continue to use MDTools in Evaluation Mode.)

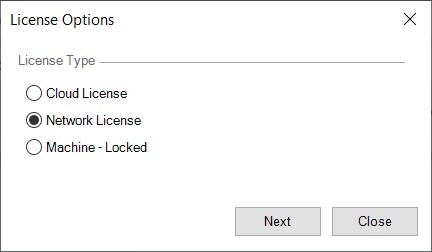

License Options dialog displays.
3. Select Network License.
4. Click Next.

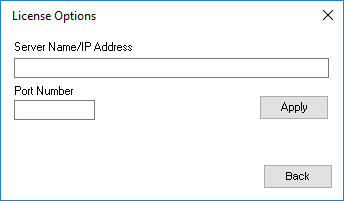

5. Enter the VEST Local License Server Name/IP Address and Port Number in License Options.
Default Port Number is 7070.
6. Click Apply to activate License.
Inventor opens with the MDTools 785 Addin loaded by default.
Note:
VEST Local License Server Manager should be synchronized (with FNO) within 3 days.
