Automatically reads an XML/MBXML exported from HyDraw® schematic
drawing.
Insert all the required cavities with connectivity information into MDTools®.
1. MDTools 785 ribbon > Insert panel > From HyDraw
The MDTools HyDraw Schematic page displays in the MDTools 785 browser.
2. Click
to
browse to the required file.
The Select HyDraw File dialog box displays.
3. Select the required HyDraw XML/MBXML.
4. Click Open.

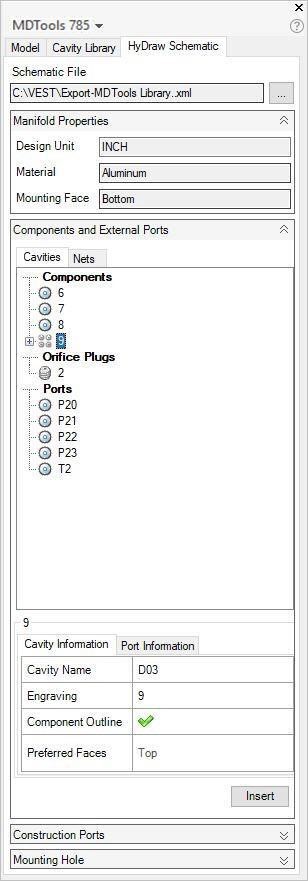

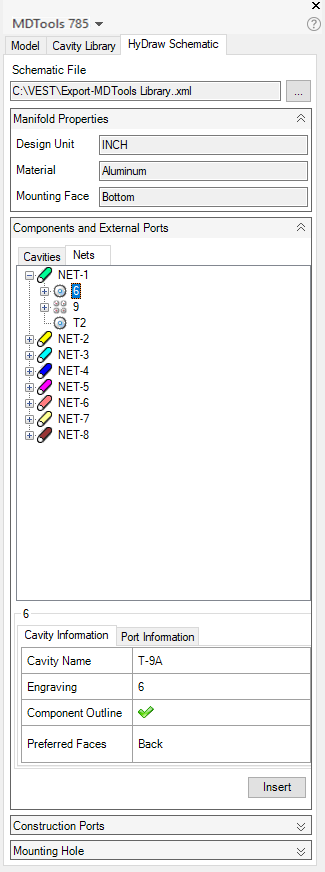

MDTools automatically populates the Cavity Explorer with all the components from the schematic drawing.
Note
To insert cavities, click Insert cavity from HyDraw Schematic.
