Machining Callout Tab

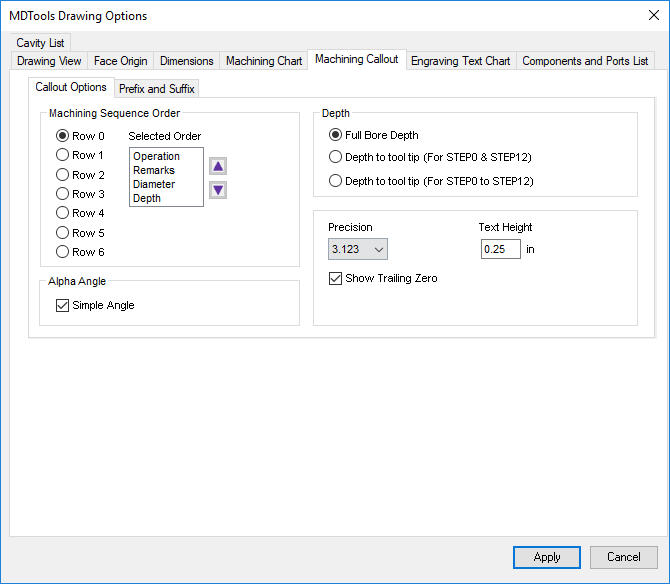

These options enable you to configure the output of the Machining Callout.

1.     Specify the order of the machining sequence with the options available in the Machining Sequence Order group.

2.     The Selected Order list shows the order in which the machining operation sequence are created for a particular row.

3.     There are 7 row options available.

4.     The order list is easily built by selecting a machining sequence row and clicking the up or down arrow button, in the desired order.

5.     Select the number of decimal places for the Depth and Diameter entries in the callout from the dropdown.

6.     Specify the value of text height for the callout text.

7.     Select the Show Trailing Zero option to display the trailing zero in the cavity diameter and depth.

8.     Select the Simple Angle option to show the alpha angle for the simple angle holes in the machining callout.

9.     Specify prefixes and suffixes for all the machining sequence rows and columns in the Prefix and Suffix tab.

10.  Specify Angle Prefix for the Alpha and Beta angle to display in the machining callout.
For example, /Angle:

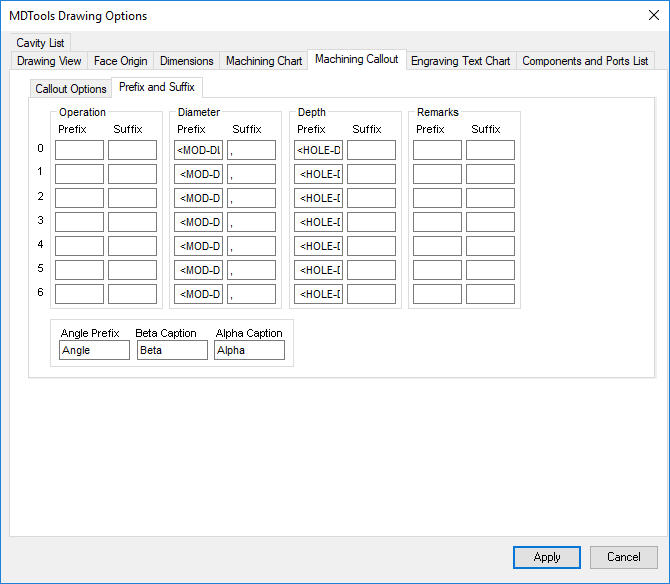

Machining Callout: Prefix and Suffix

11.  Specify Beta Caption for the Beta angle in the machining callout. For example, Beta =

12.  Specify Alpha Caption for the Alpha angle in the machining callout. For example, Alpha =
