Convert Manifold

Convert a virtual cavity design into a feature-based block design and vice versa.
Virtual design mode executes commands faster than the Feature design mode.

MDTools 985 > Block >   Convert

The Converting Manifold message displays.

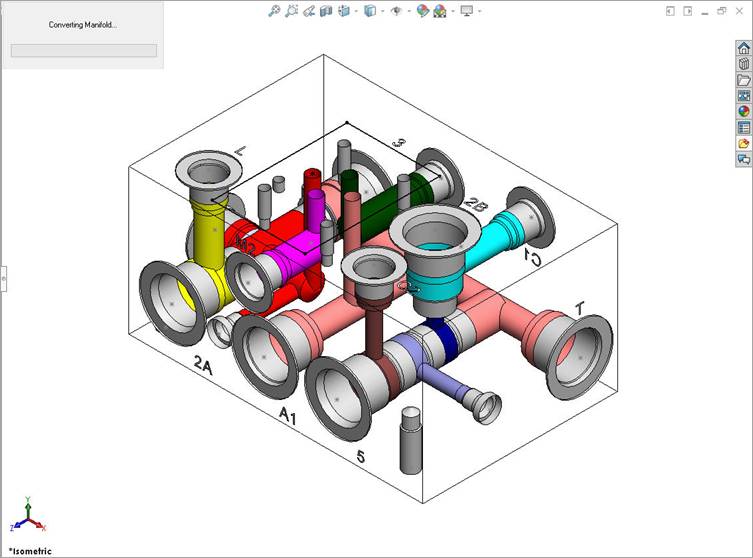

Converting manifold from Feature Design mode

MDTools^® automatically converts:

  A virtual cavity design into a feature-based design.

 A feature-based design into a virtual cavity design.

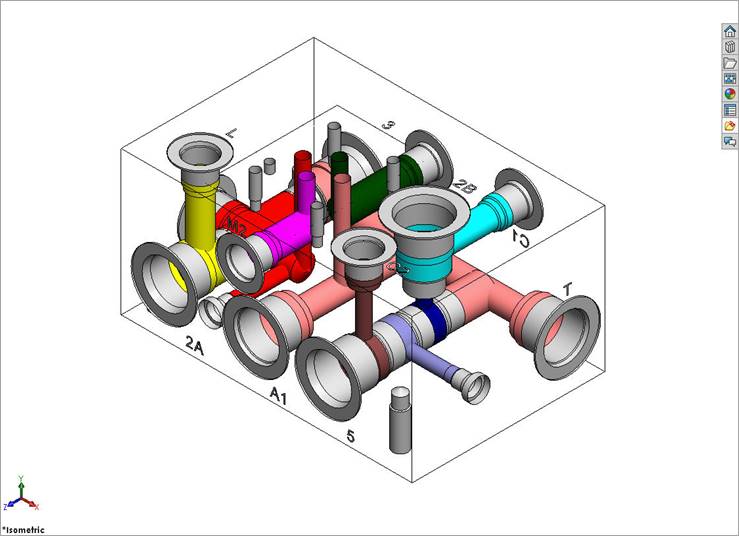

Manifold converted to Virtual Design mode

Note:

·       Constrained cavities will be unconstrained when converting the manifold.

·       Attached stamping texts will be detached from the parent cavity after converting.

·       An O-ring groove inserted in the Virtual design mode is also converted to a feature.

·       All errors during the Design Mode conversion will be listed at the end of the process. If required, save the list of cavities with errors as a Text file.

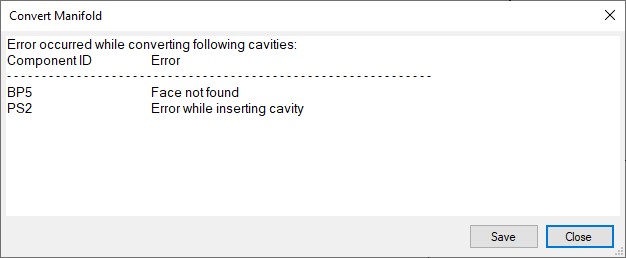

Convert Manifold Error Log
