Cavity X and Y Dim

Cavity X and Y dim are the X and Y dimensions of cavities in the footprint from the main cavity entered on the selected cavity section.

Note:

When you create a footprint you need to enter the X and Y dimensions for all the cavities created on the Edit Footprint Data dialog box.

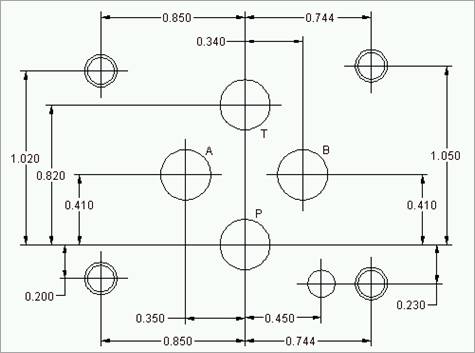

D03 footprint showing X and Y Dim from ‘P’ port
