HyDraw® CAD 700 Released

VEST, Inc. today released HyDraw® CAD 700.

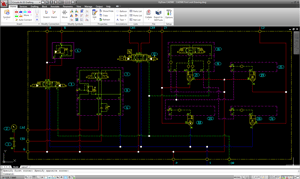

HyDraw CAD 700 is built on Autodesk's new AutoCAD 2014 engine, and has an enhanced Library Manager.

This new release includes: :

  • Dual Library: Toggle between your Local Library and Corporate Library.
  • Docs and CAD files linked to the component data in the drawing.
  • Define more criteria to Search accessories from Library.
  • Dual property values: display primary and alternate units. Use different units for different drawings.
  • Show/Hide the Connection Line properties in the drawing.
  • Balloon Numbering: Option to List component as first sub-item
  • Smart Envelope: Ports automatically inserted on the envelope line intersection with connection lines. The "glued" ports maintain connectivity when resizing the envelope. External port name can be rotated in steps of 90 degree
  • ISO 1219-2:2012 component numbering scheme.
  • Right-click Context Menu available for Connection lines, and for Symbols
  • Built-in Unit Converter: Convert a value from one selected unit to other
